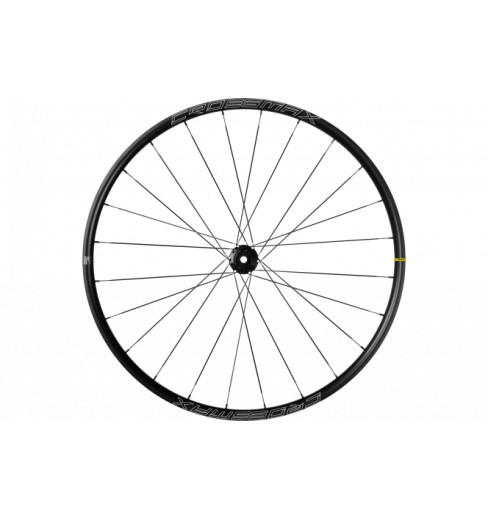

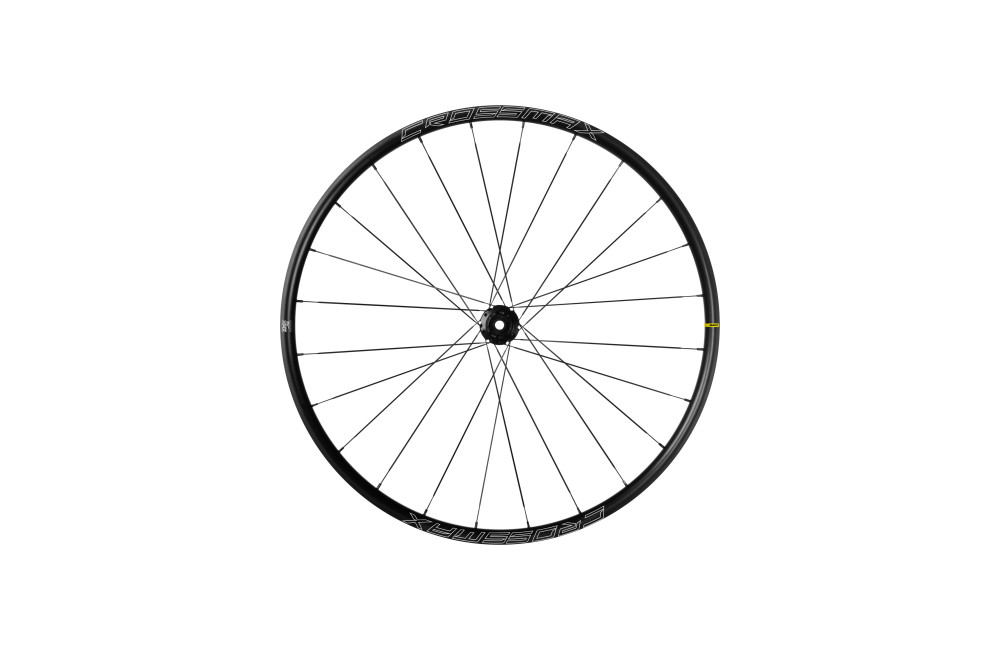

MAVIC Crossmax MTB front wheel - 27,5 "

This Tubeless Ready wheel lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is Mavic UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures.

The rim design features a 25mm internal width with a hookless profile, a sensible setup for tubeless XC tires.
The wheels are built with 24 straight-pull spokes to save weight and maximize wheel strength, so you get just the right balance of efficiency and durability. Power transfer is handled by our new ID 360 freehub, which is compatible with all common axle standards. It’s available in Boost or Non-Boost hub widths and can be used with quick-release or thru-axle setups with included adapters.


Features of the MAVIC Crossmax MTB front wheel - 29 " :

Compatibility

•     Front axle: convertible from 15mm thru axle to Quick Release with adapters (delivered with non-boost wheel)
•     Rear axle: 12mm thru axle, convertible to Quick Release with adapters (delivered with non-boost wheel)

Compatible Adapters and freewheel bodies

•     ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
•     Non-Boost : 12x142 rear axle adapters (LV2510700 - Delivered with the wheel)
•     Non-Boost : 12x135 rear axle adapters (LV2510900)
•     Non-Boost : 12 to 9mm rear adapter for quick release (LV2510800 - Delivered with the wheel)
•     Non-Boost : 15 to 9mm front adapter for quick release (L99694100 - Delivered with the wheel)
•     Boost : 12x148 rear axle adapters (LV2510700 - Delivered with the wheel)
•     Boost : Torque Caps (LV2374400)
•     Boost & Non-Boost : 15mm front hub cap (LV2372500 - Delivered with the wheel)
•     ID360 Sram XD freewheel body (LV3740100)
•     ID360 Shimano HG9 alloy freewheel body (LV3780100)
•     ID360 Shimano steel freewheel body (LV3790100)

Weight

•     Pair 29" without tyre: 1770 grams
•     Front 29" without tyre: 820 grams
•     Rear 29" without tyre: 950 grams

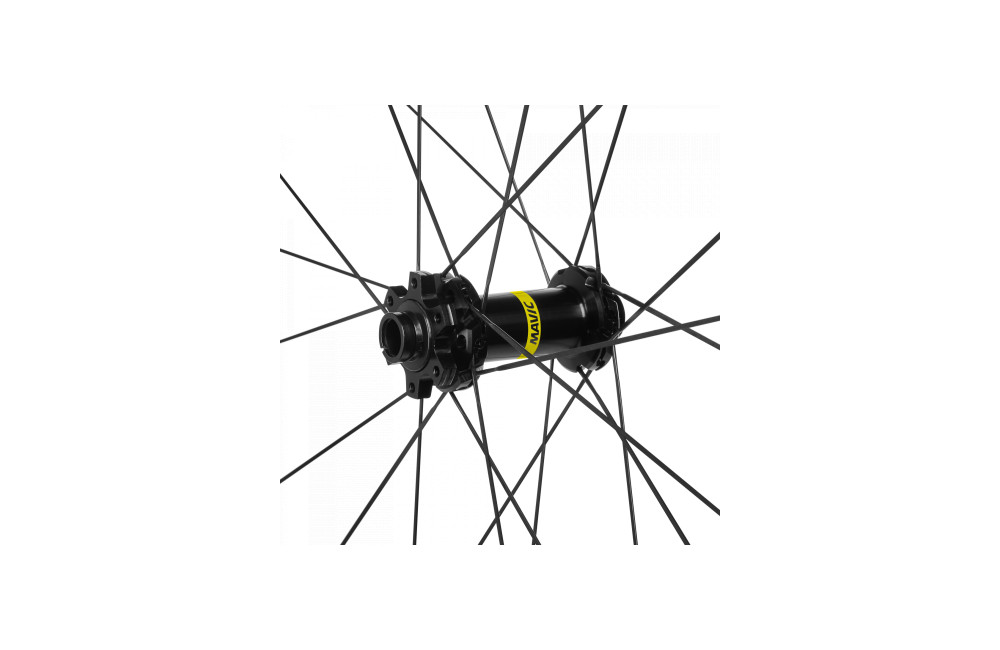

Hubs

•     QRM Auto bearing preload technology
•     Front and rear bodies: aluminum
•     Axle material: aluminum

Intended Use

•     Recommended tyre sizes: 46mm to 64mm (1.8" to 2.5")
•     For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
•     ASTM CATEGORY 3 : CROSS COUNTRY

Rims

•     Use with Mavic Tubeless Tape
•     Hookless profile
•     ETRTO size 29" ETRTO : 622x25TSS
•     UST Tubeless Ready
•     Joint: sleeved
•     Drilling: traditional
•     Valve hole diameter: 6.5 mm
•     Material: S6000 Aluminum
•     Tire: UST Tubeless and tubetype

Spokes

•     Material: steel
•     Lacing: front and rear crossed 2
•     Count: 24 front and rear
•     Shape: straight pull, round

Versions

•     Hub width : Boost (front 110 ) or Non-Boost (front 100 )
•     Color: Black only

Delivered with

•     Rear QR adapters (non-boost wheel)
•     Front QR adapters (non-boost wheel)
•     Pre-installed tubeless rim tape
•     User guide
