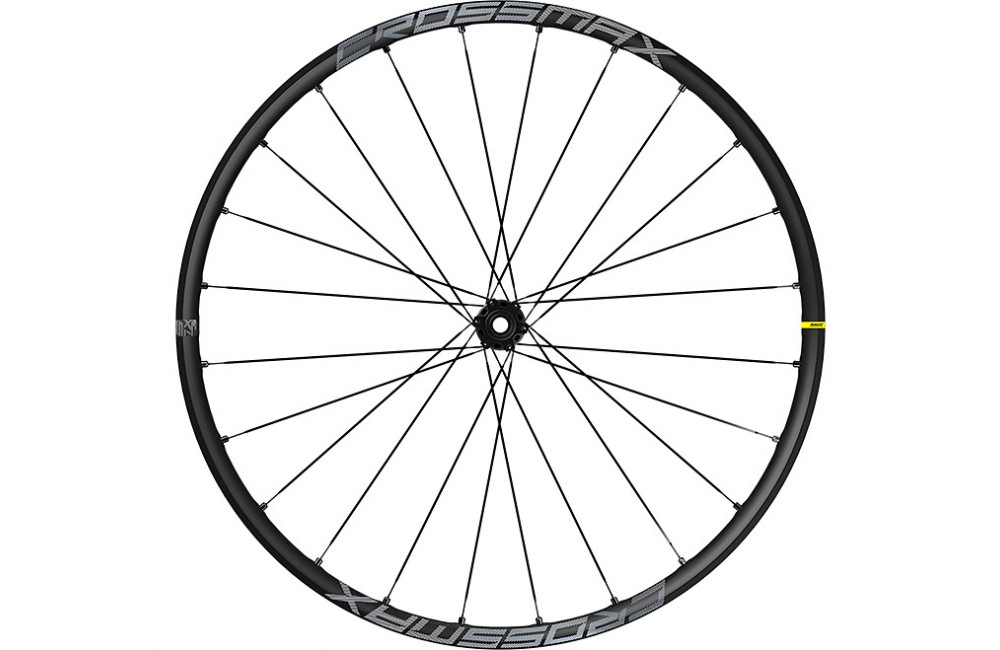

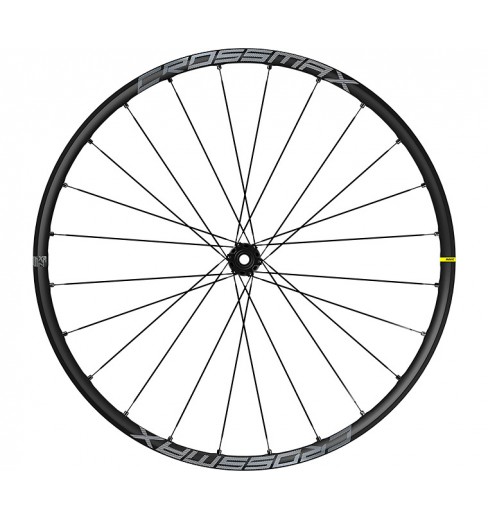

MAVIC Crossmax XL S 29" trail rear wheel View full size
MAVIC Crossmax XL S 29" trail rear wheel MAVIC Crossmax XL S 29" trail rear wheel

MAVIC Crossmax XL S 29" trail rear wheel

Reference: R370 R377 R391

The new Mavic Crossmax XL S is lighter and stronger, and it makes tubeless setup a breeze.

More details

quantity up quantity down

480,00 €

The rims are engineered with Mavic patented Fore technology, featuring a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tires. Mavic use ISM rim machining, which removes material in strategic areas of the rim to minimize weight without compromising strength. The rim has a 30mm internal width, optimized to squeeze the best performance out of any modern trail tire, and our Black Shield technology gives them distinctive finish that protects against scratches and abrasions.

Features of the MAVIC Crossmax XL S 29" trail rear wheel :


  •     Rear axle: 12x148 Boost thru axle
  •     Freewheel: Shimano HG9, XD or Micro Spline

Compatible Adapters and freewheel bodies

  •     ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
  •     Boost : Torque Caps (LV2374400)
  •     ID360 Sram XD freewheel body (LV3740100)
  •     ID360 Shimano HG9 alloy freewheel body (LV3780100)


  •     Pair 29" without tyre: 1790 grams
  •     Front 29" without tyre: 830 grams
  •     Rear 29" without tyre: 960 grams


    Infinity Hubs
    Axles: Front 15X110 Boost ; Rear 12X148 Boost
    Hub available with 6-bolt or center lock (R) brake rotors
    QRM Auto bearing preload technology
    Instant Drive 360 freewheel technology

Intended Use

  •     Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")
  •     For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included


  •     Asymmetrical rim design
  •     ETRTO size 29": 622x30TC
  •     Black Shield treatment (protects your rim against impacts and scratches)
  •     Internal width: 30 mm
  •     Fore tapeless tubeless technology
  •     SUP welding technology
  •     Material: S6000 Aluminum
  •     Tire: UST Tubeless and tubetype
  •     Weight reduction: ISM
  •     Material: Maxtal


  •     Lacing: front and rear crossed 2, contactless
  •     Material: steel
  •     Nipples: Fore integrated aluminum
  •     Count: 24 front and rear


  •     Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
  •     Hub width : Boost only (front 110, rear 148)
  •     Disc standard : 6 Bolts or Center Lock (R)

Delivered with

  •     Fore adjustment wrench
  •     2 replacement spokes with each wheel
  •     Multifonction adjustment wrench (delivered with rear wheel)
  •     UST valve and accessories
