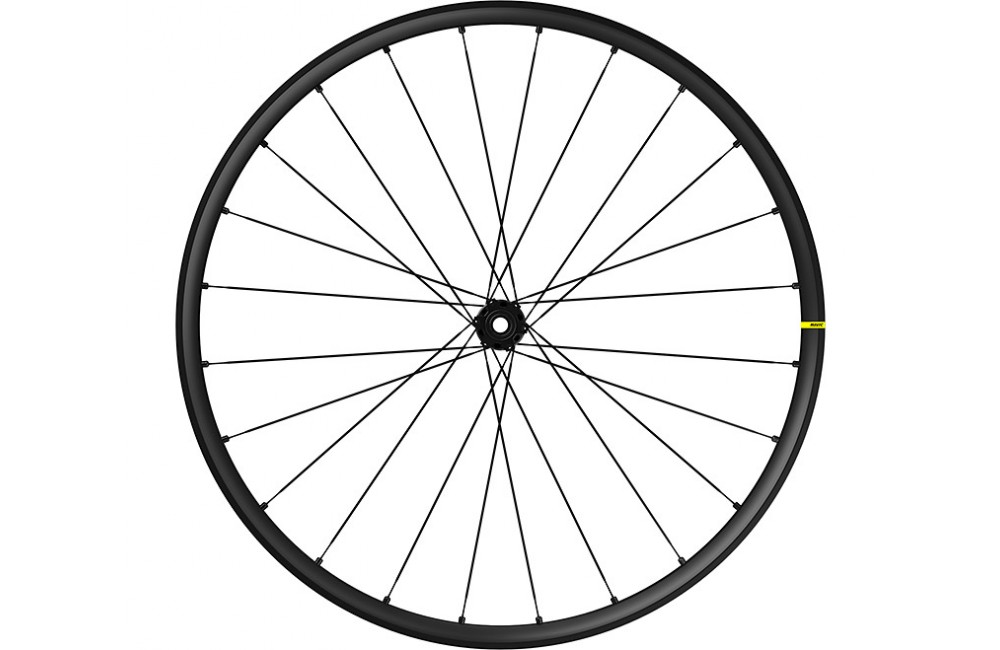

MAVIC Crossmax XL 27.5" trail front wheel View full size

MAVIC Crossmax XL 27.5" trail front wheel

Reference: LF9051200

Super strong and durable, this MAVIC Crossmax XL 29 trail MTB wheel offers unrivaled alloy rim performance and a tubeless system.

More details

quantity up quantity down

225,00 €

The rims are made with our patented Fore technology, which features a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tires. The rim has a 30mm internal width, perfect for optimizing the performance of any modern trail tire. It’s engineered with a super strong triangular shape, designed specifically to absorb impacts from the trail.

Mavic Black Shield technology gives them a distinctive finish that protects against scratches and abrasions. The Infinity hubs feature a stiffer and lighter construction that’s enhanced by the ultra-reliable ID360 double ratchet system for fast engagement.

Features of the MAVIC Crossmax XL 29 trail MTB front wheel :


  •     Front axle: 15x110 Boost thru axle
  •     Rear axle: 12x148 Boost thru axle
  •     Freewheel: Shimano HG9, XD or Micro Spline

Compatible Adapters and freewheel bodies

  •     ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
  •     Boost : Torque Caps (LV2374400)
  •     ID360 Sram XD freewheel body (LV3740100)
  •     ID360 Shimano HG9 alloy freewheel body (LV3780100)


  •     Pair 650b/27,5" without tyre: 1830 grams
  •     Front 650b/27,5" without tyre: 850 grams
  •     Rear 650b/27,5" without tyre: 980 grams
  •     Pair 29" without tyre: 1930 grams
  •     Front 29" without tyre: 900 grams
  •     Rear 29" without tyre: 1030 grams


  •     Infinity Hubs
  •     Axles: Front 15X110 Boost ; Rear 12X148 Boost
  •     Hub available with 6-bolt or center lock (R) brake rotors
  •     Instant Drive 360 freewheel technology

Intended Use

  •     Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")
  •     For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included


  •     ETRTO size 27.5": 584x30TC
  •     Asymmetrical rim design
  •     ETRTO size 29": 622x30TC
  •     Black Shield treatment (protects your rim against impacts and scratches)
  •     Internal width: 30 mm
  •     Fore tapeless tubeless technology
  •     SUP welding technology
  •     Material: S6000 Aluminum
  •     Tire: UST Tubeless and tubetype
  •     Material: Maxtal


  •     Lacing: front radial, rear crossed 2, contactless
  •     Lacing: front and rear crossed 2, contactless
  •     Shape: straight pull, flat, double butted
  •     Material: steel
  •     Nipples: Fore integrated aluminum
  •     Count: 24 front and rear


  •     UST Tubeless Ready


  •     Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
  •     Hub width : Boost only (front 110, rear 148)
  •     Disc standard : 6 Bolts or Center Lock (R)

Delivered with

  •     Fore adjustment wrench
  •     2 replacement spokes with each wheel
  •     Multifonction adjustment wrench (delivered with rear wheel)
  •     UST valve and accessories
