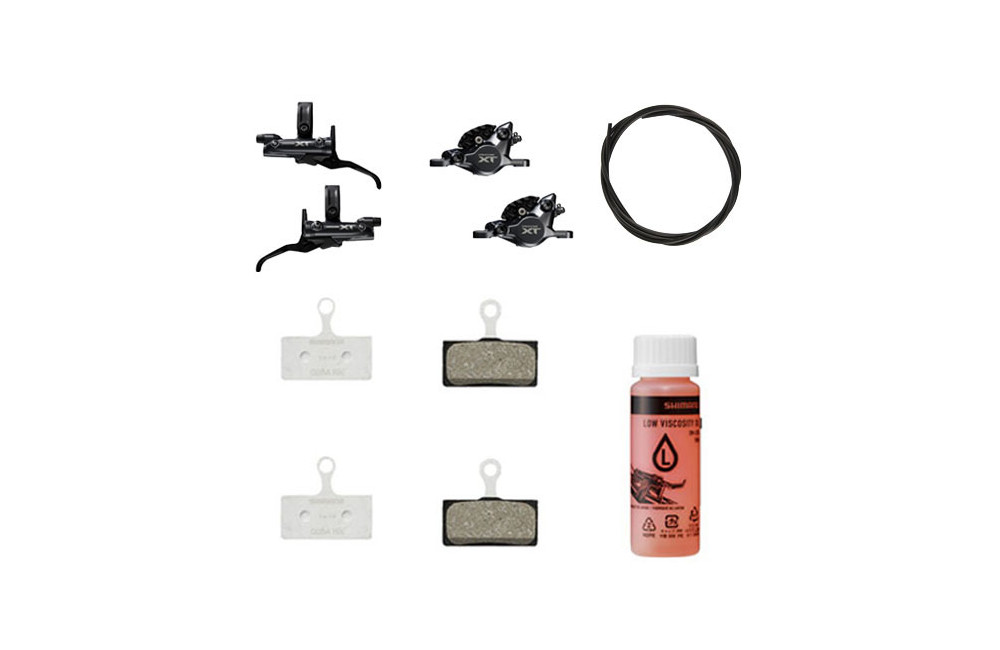

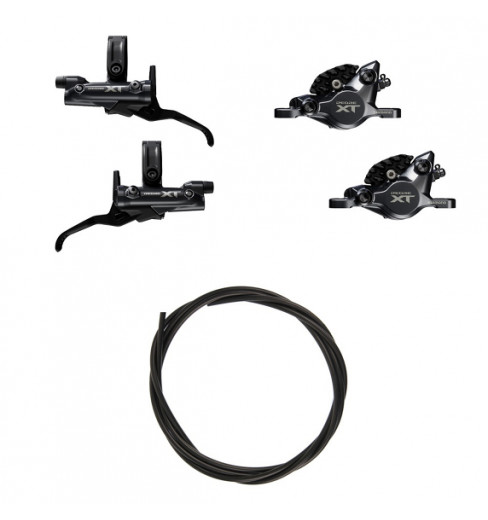

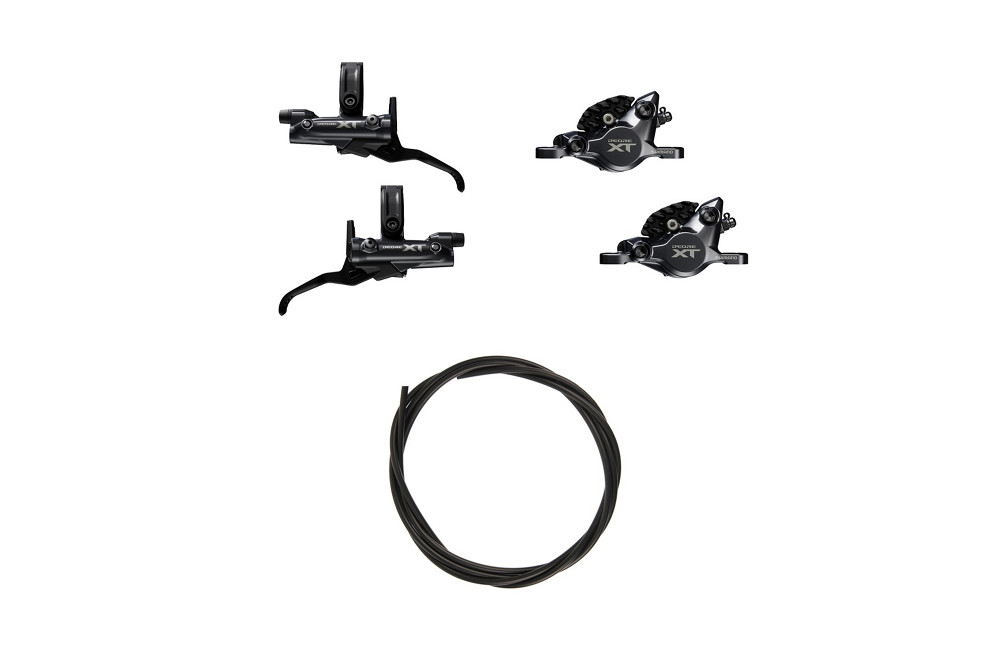

Pair of SHIMANO Deore XT BL-M8200 / BR-M8220 2-piston brakes

Advantages of the New Shimano XT Calipers

Robust construction : alloy caliper body designed for maximum durability, even under intensive use.

Customizable setup : optimized pairing with the DEORE XT BL-M8200 lever to achieve the ideal balance between braking power and weight savings.

Consistent, controlled braking : new SERVO WAVE kinematics deliver a more progressive power curve and optimized pad-to-rotor contact throughout the lever stroke, ensuring balanced and precise braking control.

Specifications

• Model : BR-M8200
• Series : Deore XT
• Brake type : Hydraulic disc
• Brake hose : SM-BH90-SBM
• Recommended lever : BL-M8220
• Recommended rotors : RT-CL800, SM-RT86
• Pistons : 2

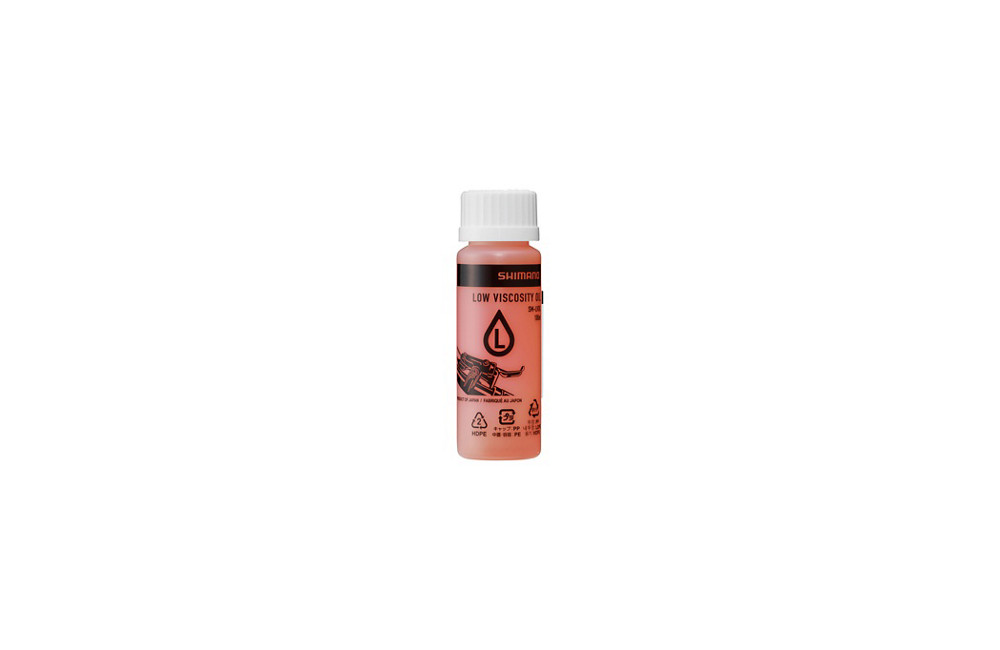

• Oil : Shimano low-viscosity mineral oil

Technologies

Shimano Ice Technologies
Minimizes heat buildup to maintain consistent braking performance, preventing power fade during long, intense descents.

Shimano One Way Bleeding
The ONE WAY BLEEDING system has been designed to easily and quickly prevent any air from entering the hydraulic system. Oil routing has been refined throughout the entire system to prevent air bubbles from becoming trapped.

Advantages of Shimano XT Levers

Consistent control : The new low-viscosity mineral oil ensures reliable and stable braking performance in all conditions.

Customization : Compatible with M8220 Enduro or M8200 XC calipers, for a lightweight and powerful setup.

Durability : The alloy lever blade of the BL-M8200 benefits from Shimano’s proven forging process.

Enhanced ergonomics : New shapes and pivot points, combined with improved reach adjustment, make the BL-M9220 suitable for all riders.

Clean cable routing : Updated cable routing provides a sleek, tidy lever appearance.

Specifications

• Model: BL-M8200
• Discipline: Enduro MTB
• Series: Deore XT
• Brake Type: Hydraulic Disc
• Brake Hose: SM-BH90-SMB
• Recommended Caliper: BR-M8220
• Oil Type: Low-viscosity Shimano oil

Technologies

Shimano Ergo Flow
The optimized pivot point follows the natural arc of your finger, making braking feel intuitive and comfortable.

Shimano I-SPEC EV
The internal clamp increases lever rigidity and improves control while leaving enough space for other accessories on the handlebar.

Shimano Servo Wave Action
The lever provides fast initial pad movement, followed by a rapid increase in braking power, allowing more powerful and controlled braking with less lever stroke.
