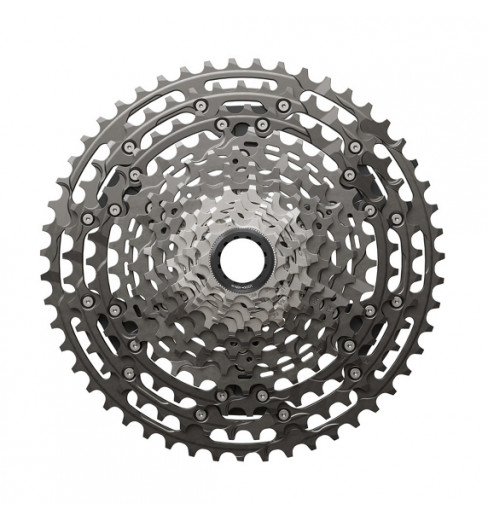

Shimano 12-Speed XTR CS-M9200-12 MTB Cassette

The CS-M9200 cassette represents the evolution of HYPERGLIDE+ shifting. Its redesigned tooth profiles ensure smoother, faster, and more durable gear changes, even under high load. Compatible with MICRO SPLINE, it uses steel, titanium, and alloy cogs to optimize both weight and durability.

Advantages of the New Shimano Cassette

Wide Gear Range :
The 10-51T cassette offers a 510% gear range, with all XTR cassette options providing broad compatibility with any frame.

Compact 9-45T Drivetrain :

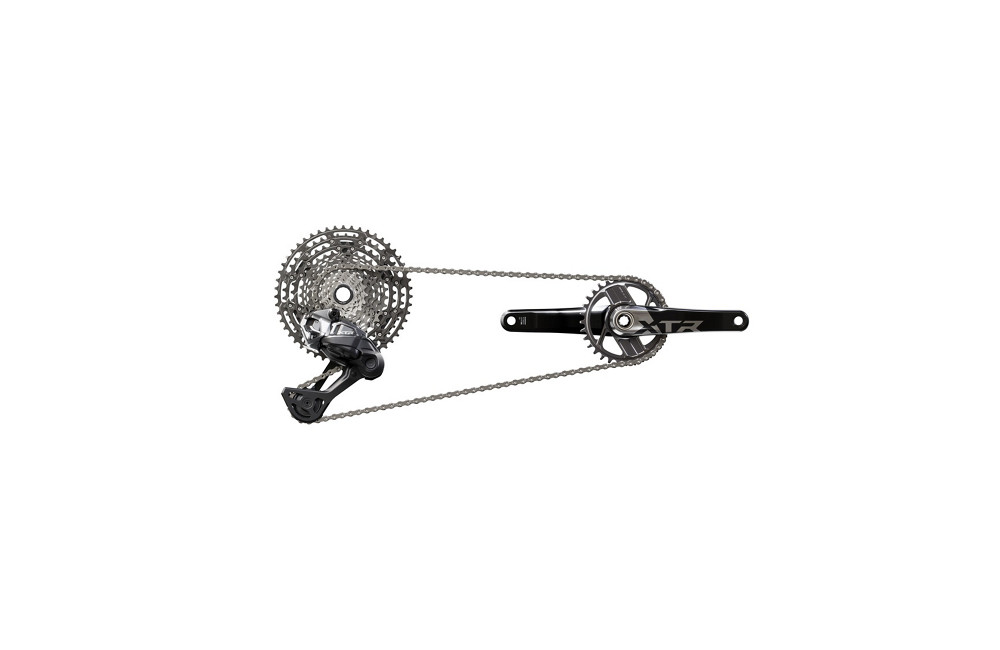

Paired with smaller chainrings and the medium-cage XTR rear derailleur, the 9-45T cassette provides a lightweight setup with increased clearance and a 500% gear range without compromising performance.

Freehub Compatibility :
The CS-M9200 mounts on a standard MICRO SPLINE freehub body. The 9-45T cassette requires a special lockring tool (TL-LR021) for installation.

Construction Materials :
Strategic use of steel, titanium, and aluminum makes the CS-M9200 cassette light yet robust, delivering the reliability and confidence every rider needs.

Technical Specifications

• Model: CS-M9200-12
• Series: XTR
• Type: Hyperglide+
• Speeds: 12
• Chain Compatibility: HG 12-speed
• Technologies
• Combinaision 1 (10-12-14-16-18-21-24-28-33-39-45-51T)
• Combinaison 2 (9-11-13-15-17-19-21-24-28-33-39-45T)

Hyperglide+
Decades of engineering have gone into HYPERGLIDE+, ensuring fast, smooth shifting in all conditions. Cassette teeth are specially machined to guide the chain up and down smoothly and reliably, even under high load.

Micro Spline
The MICRO SPLINE system features a lightweight aluminum freehub body and a 10-tooth small cog, reducing weight while maintaining optimal performance.
