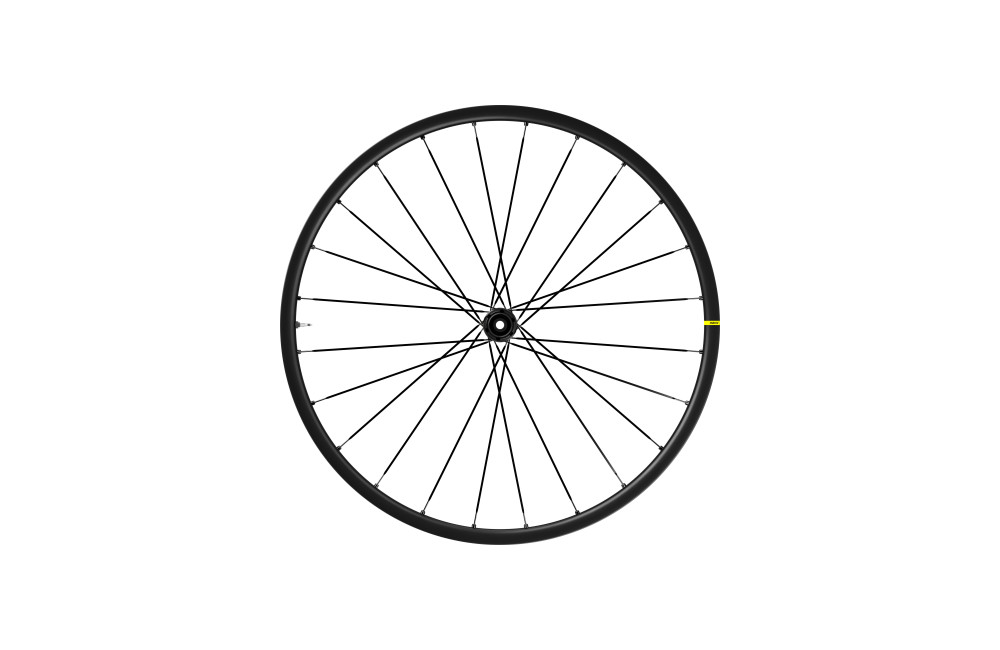

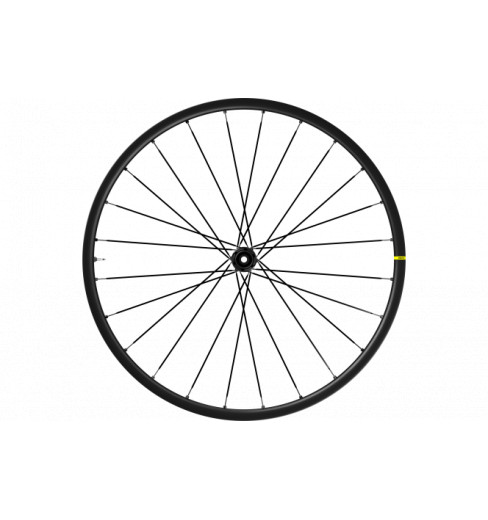

MAVIC ALLROAD S DISC back wheel View full size
MAVIC ALLROAD S DISC back wheelMAVIC ALLROAD S DISC back wheel
MAVIC ALLROAD S DISC back wheel MAVIC ALLROAD S DISC back wheel


MAVIC

MAVIC ALLROAD S DISC back wheel

Reference: R3675155

Trusted Mavic technologies and design, all packaged in a lightweight, durable UST Allroad wheelset with a stunning finish, make this a smart upgrade for adventurous riders

More details

quantity up quantity down

270,00 €

Trusted Mavic technologies and design, all packaged in a lightweight, durable UST Allroad wheelset with a stunning finish, make this a smart upgrade for adventurous riders

 Rims

  • Material: Maxtal
  • Tire: UST Tubeless and tubetype
  • Disc brake specific profile
  • SUP welding technology
  • Fore tapeless tubeless technology
  • UST tubeless technology
  • Internal width: 22 mm
  • Hookless profile
  • ETRTO size: 622x22TSS
  • Height: 22 mm

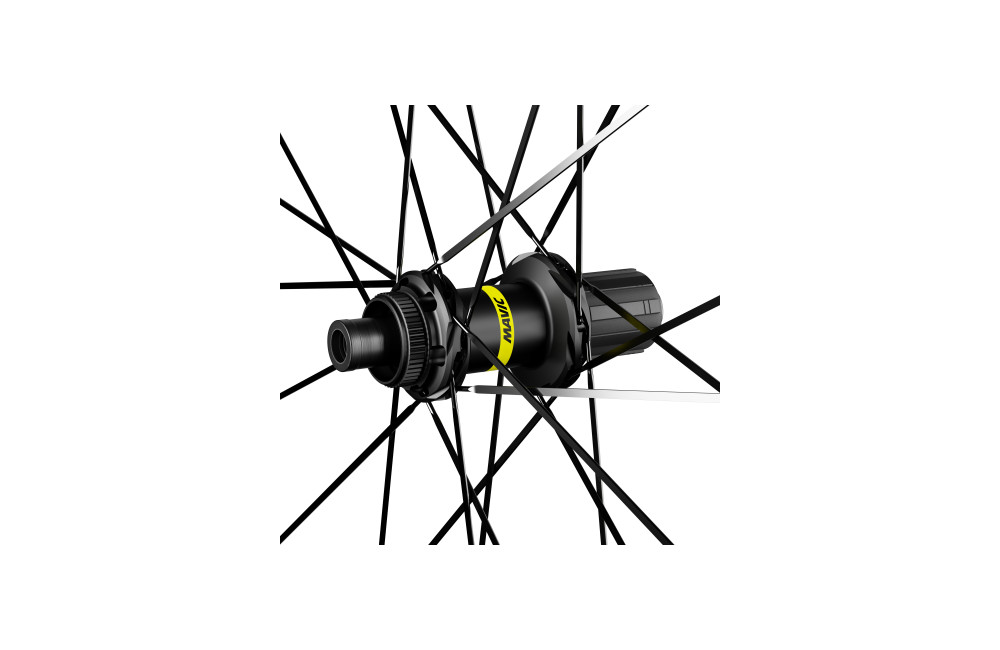

Hubs

  • Axle material: aluminum
  • Front and rear bodies: aluminum
  • Instant Drive 360 freewheel technology
  • Rear: Quick Release, 12x142 and 12x135 compatible
  • QRM Auto bearing preload technology
  • Infinity hubs
  • Hub available for Center Lock brake rotors only



Spokes

  • Count: 24 front and rear
  • Nipples: Fore integrated aluminum
  • Material: steel
  • Shape: straight pull, flat, double butted
  • Lacing: front and rear crossed 2, contactless



Intended use

  • Recommended tire sizes: 28 to 64 mm (11 to 25)
  • ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
  • Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
  • Maximum tyre pressure: 46bar/67PSI with a 28mm tyre - 327bar/39PSI with a 64mm tyre



Versions

  • Color: Black only
  • Disc standard : Center Lock®
  • Freewheel: Shimano/Sram



Compatible Adapters and freewheel bodies

  • 12 to 9mm front adapter for quick release (V2680301)
  • 15mm axle (V2373501)
  • 12mm front hub cap (V2680501 - Delivered with the wheel)
  • ID360 Shimano / Sram Light freewheel body (V3850101)
  • ID360 Campagnolo freewheel body (V3440101)
  • ID360 XD-R freewheel body (V2580101)
  • ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
  • 12 to 9mm rear adapter for quick release (V2510801 (with axle V2373401)
  • ID360 N3W freewheel body (V4270101)



DELIVERED WITH

  • User guide
  • UST valve and accessories
