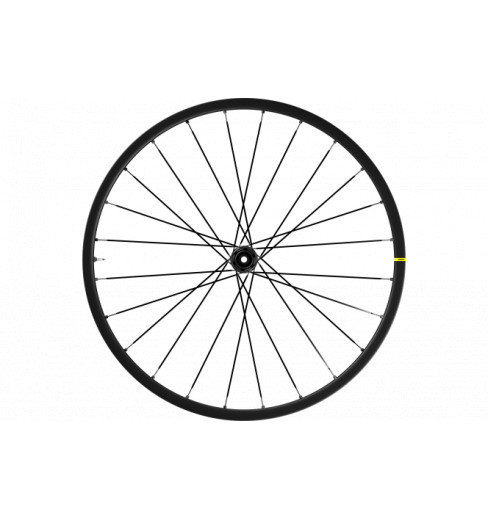

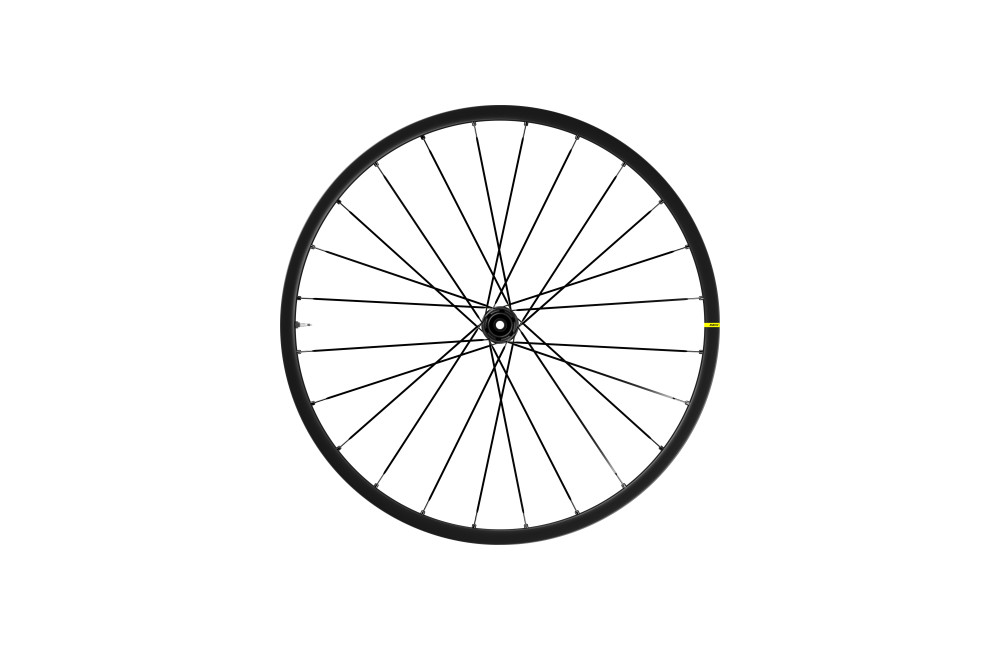

MAVIC ALLROAD S DISC front wheel

Trusted Mavic technologies and design, all packaged in a lightweight, durable UST Allroad wheelset with a stunning finish, make this a smart upgrade for adventurous riders

 Rims

• Material: Maxtal
• Tire: UST Tubeless and tubetype
• Disc brake specific profile
• SUP welding technology
• Fore tapeless tubeless technology
• UST tubeless technology
• Internal width: 22 mm
• Hookless profile
• ETRTO size: 622x22TSS
• Height: 22 mm

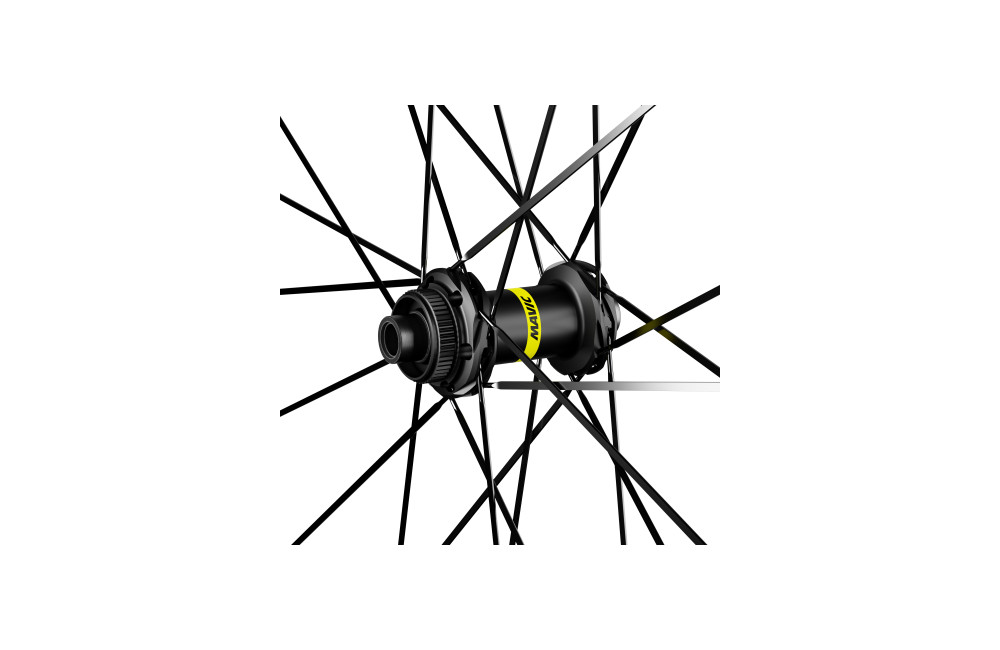

Hubs

• Axle material: aluminum
• Front and rear bodies: aluminum
• Instant Drive 360 freewheel technology
• Front: Quick release, 12x100 and 15x100 through axle compatible
• QRM Auto bearing preload technology
• Infinity hubs
• Hub available for Center Lock brake rotors only

Spokes

• Count: 24 front and rear
• Nipples: Fore integrated aluminum
• Material: steel
• Shape: straight pull, flat, double butted
• Lacing: front and rear crossed 2, contactless

Intended use

• Recommended tire sizes: 28 to 64 mm (11 to 25)
• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
• Maximum tyre pressure: 46bar/67PSI with a 28mm tyre - 327bar/39PSI with a 64mm tyre

Versions

• Color: Black only
• Disc standard : Center Lock®
• Freewheel: Shimano/Sram

Compatible Adapters

• 12 to 9mm front adapter for quick release (V2680301)
• 15mm axle (V2373501)
• 12mm front hub cap (V2680501 - Delivered with the wheel)

DELIVERED WITH

• User guide
• UST valve and accessories
